Open Carport
10' × 20' × 6'
Horizontal · Open sides and ends
A 10x20 A-frame horizontal roof carport example with open sides and ends for compact vehicle coverage. Frame: 14-Gauge.
Walk through this buildSierra Series: Boxed-Eave Carports
A peaked A-frame roofline with finished boxed eaves and horizontal panels. Compare its residential profile with a rounded roof and a vertical panel layout. 14-gauge framing is standard; a 12-gauge upgrade is available.
Residential vehiclesTrailers and boatsRural storage
See the space change.
One real before-and-after view makes the footprint and finished covered space easier to picture. This is a representative horizontal a-frame project transformation.

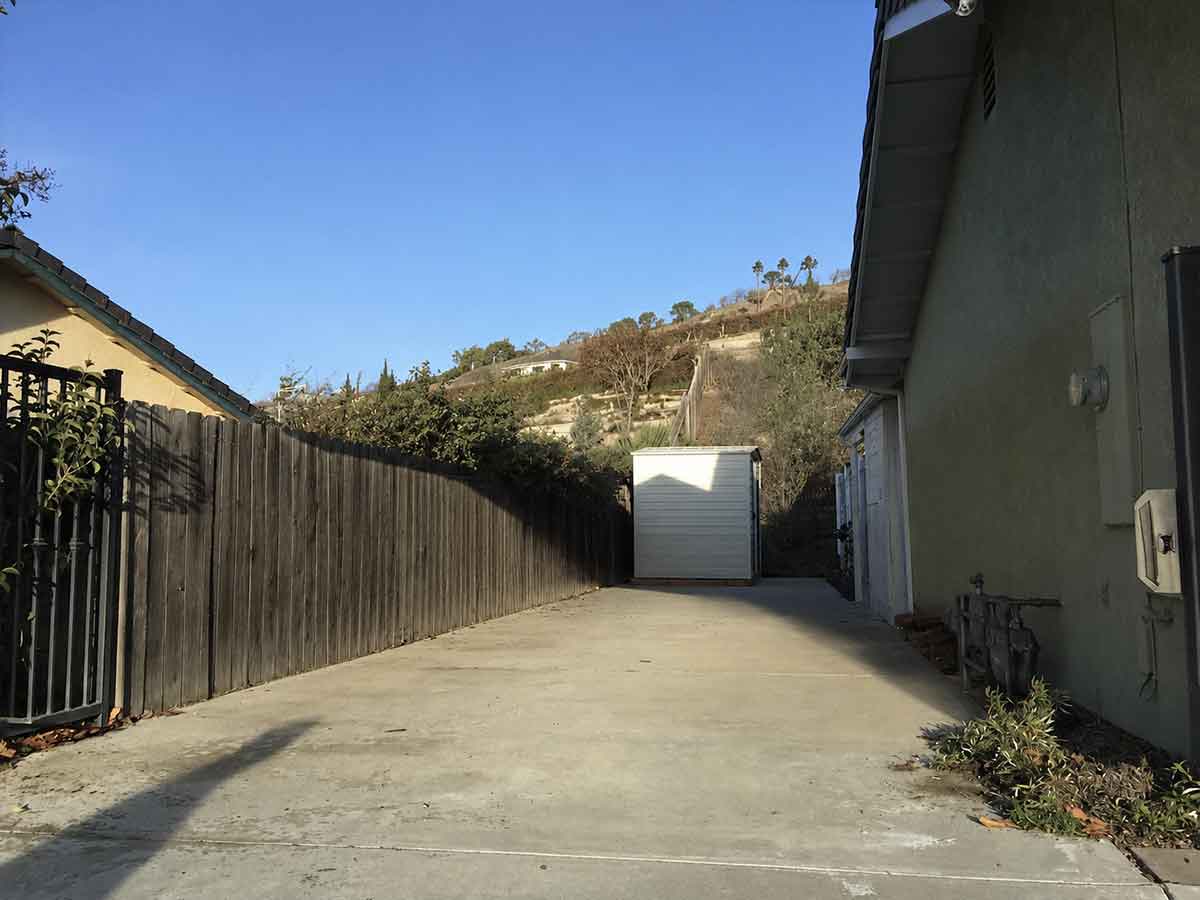

BeforeOpen site
The footprint before the structure is installed.

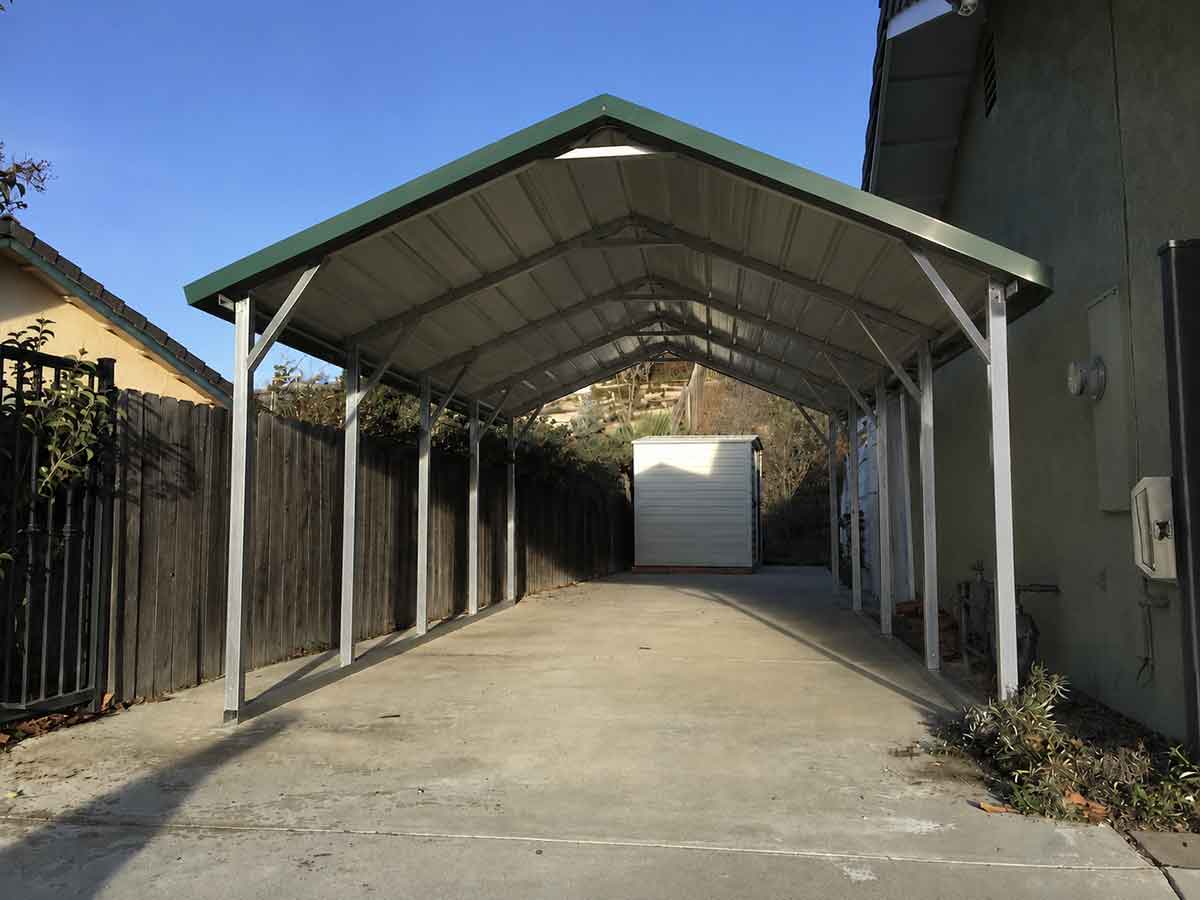

After installationCovered space
The finished structure using the same footprint.
Installed projects
See boxed-eave coverage
Real project photos show the peaked roof line, horizontal panels, and residential-scale coverage.
Boxed-eave carport in a residential setting
Driveway parking and light-duty covered workspace
Boxed-Eave RoofOpen coverage
Horizontal A-Frame CarportsExplore boxed-eave carports
Boxed-eave roof carport example
Residential driveway and workshop coverage
Boxed-Eave RoofOpen coverage
Horizontal A-Frame CarportsExplore boxed-eave carports
Boxed-eave carport with side header
Open vehicle coverage with a defined access edge
Boxed-Eave RoofOpen coverageFocus:Access detail
Horizontal A-Frame CarportsReview boxed-eave options
Boxed-eave carport on a prepared site
Single-vehicle coverage with site-surface context
Boxed-Eave RoofOpen coverageFocus:Site surface
Horizontal A-Frame CarportsReview boxed-eave options
The residential boxed-eave profile
A-frame horizontal carports add a peaked, boxed-eave roofline for a more residential appearance while keeping horizontal panels. It is a visual step up from standard without automatically moving to a vertical roof system.
- More residential appearance
- Peaked boxed-eave profile
- Horizontal panel orientation
- Compare vertical for longer or exposed sites
Norcal Carports Signature Lineup
Choose Your Series
Compare three roof and frame packages by profile, panel direction, saved example, and gauge. Choose the combination that fits what you need to cover and the conditions at your site.
Boxed-Eave Profile Viewing Current
Sierra Series
Peaked roof · horizontal panels
A peaked roofline with boxed eaves and horizontal panels. It gives an open-sided carport a more home-like profile while keeping the panel direction horizontal.
Roof ProfileA-Frame Horizontal (Boxed-Eave)
A-frame peak with horizontal roof panels running front-to-back and finished boxed eaves.
Framing Steel14-gauge standard · 12-gauge heavy-duty upgrade available
Best Suited For
- Residential driveways and detached parking areas
- Boats, trailers, and everyday work vehicles
- Projects where a peaked roofline fits the property
- Buyers comparing roof appearance and panel direction
Available Upgrades
12-gauge framing upgrade; confirm the selected package in the quote · Gable ends and side panels based on the coverage you need · Anchors selected for the installation surface · Roof and trim color choices
Regular Roof
Valley Series
Rounded roof · everyday coverage
A regular-roof carport with a rounded profile for straightforward vehicle, trailer, and equipment coverage. Compare the saved size and price against the clearance and site conditions you need.
Roof ProfileStandard Curved (Wrap-Around)
A rounded roofline with horizontal roof panels running along the building length.
Framing Steel14-gauge standard · 12-gauge heavy-duty upgrade available
Best Suited For
- Driveway parking for cars and trucks
- Trailers, boats, and secondary vehicles
- Open equipment and property storage
- Projects where a rounded roof profile fits
Available Upgrades
12-gauge framing upgrade; confirm the selected package in the quote · Partial or full side and end coverage by configuration · Anchors selected for the installation surface · Roof and trim color choices
12-Gauge Vertical
Elite Series
Vertical roof · 12-gauge frame
A runoff-focused package with ridge-to-eave roof panels, hat-channel support, and 12-gauge framing as standard. Bracing, anchors, and engineering depend on the building and site.
Roof ProfileA-Frame Vertical (with Hat Channels)
Vertical panels run from ridge to eave over steel hat-channel supports, creating a direct path for roof runoff and loose debris.
Framing Steel12-gauge heavy commercial frame standard
Best Suited For
- RVs and travel trailers when the selected height clears accessories
- Longer runs and properties with tree debris or seasonal snow
- Sites where roof runoff direction is part of the decision
- Projects where framing, bracing, and anchors need a closer review
Available Upgrades
Engineering when the project or jurisdiction requires it · Side and end enclosure options by configuration · Additional height for RV accessories and slide-outs · Wainscot and two-tone color options
How To Choose Between The Series
1. Compare Sierra: Choose the peaked boxed-eave profile when it fits the look and panel direction you want.
2. Compare Valley: Consider the rounded regular roof for straightforward open coverage, then review the example prices for your size.
3. Compare Elite: Consider a vertical roof with 12-gauge framing when its panel direction and frame package fit your vehicle, structure, and site requirements.
💡 When you request a quote: Ask about a 12-gauge framing option with any roof profile. The final gauge, bracing, and anchors depend on the selected building and site.
Start with what you need to protect.
Measure the widest vehicle or equipment first, then add clearance for doors, mirrors, walkways, turning access, and future use.
- Residential vehicles
- Trailers and boats
- Rural storage
Compare more example builds
These are planning examples. Final pricing varies by location, size, roof style, gauge, permits, site conditions, and selected options.
Open Carport
15' x 18' x 8'
Example price
$3,165
Sierra Series · Horizontal · 14-Gauge · Open sides
Inspect this build| Building example | What this build shows | Example price |
|---|---|---|
| Open Carport15' x 18' x 8'A 15x18 A-frame horizontal roof carport example with open sides and ends for compact everyday coverage. | Sierra SeriesHorizontal14-GaugeOpen sides | $3,165 Inspect build |
A clear starting package.
- Free delivery on most projects
- Free installation when the site is level, clear, and accessible
- Peaked boxed-eave profile with horizontal roof panels
- 14-gauge framing options with heavier framing available when appropriate
- Multiple sizes, colors, anchors, and enclosure options available
- Financing and warranty details confirmed under the selected manufacturer terms
The details that affect your project.
Still comparing options?
Send us the vehicle or equipment dimensions, ZIP code, and surface. We can point you toward a practical starting size.
Ask for a recommendationWhat is a horizontal A-frame carport?+
It is a boxed-eave carport with a peaked, more residential roofline and panels that run horizontally. It sits between the rounded standard roof and the vertical roof in appearance and use.
How is it different from a standard roof?+
A standard roof uses a rounded profile. A horizontal A-frame adds a peaked boxed-eave shape for a more residential look while keeping horizontal panels.
When should I compare a vertical roof?+
Compare vertical when the building is longer, the site has heavy tree debris or snow, or runoff performance is more important than the horizontal A-frame appearance.
Can it cover an RV, boat, or trailer?+
Yes, when the width, leg height, turning access, and roof clearance are planned around the actual vehicle or trailer. Include AC units, antennas, mirrors, hitches, and loading space in the request.
Do I need a permit?+
Permit requirements vary across Northern California by city or county, structure size, placement, foundation, enclosure, wind or snow loads, intended use, and HOA rules. Confirm the local requirements with the applicable building department before ordering or installation. The customer is responsible for permit applications, permit fees, zoning and setback confirmation, and coordinating required inspections with the applicable city or county. Engineering is conditional, not included with every building. If a city, county, HOA, or inspector requests it, Norcal Carports may coordinate available engineering information or a quote from A&A Engineering.
Ready to price your site?
Send the size, installation ZIP code, surface, and site conditions. We will review the project details and confirm the next step.
