Bracing Gallery
Examples of diagonal and wall bracing used in our steel structures for added strength and stability.
Steel Building Bracing Photo Gallery

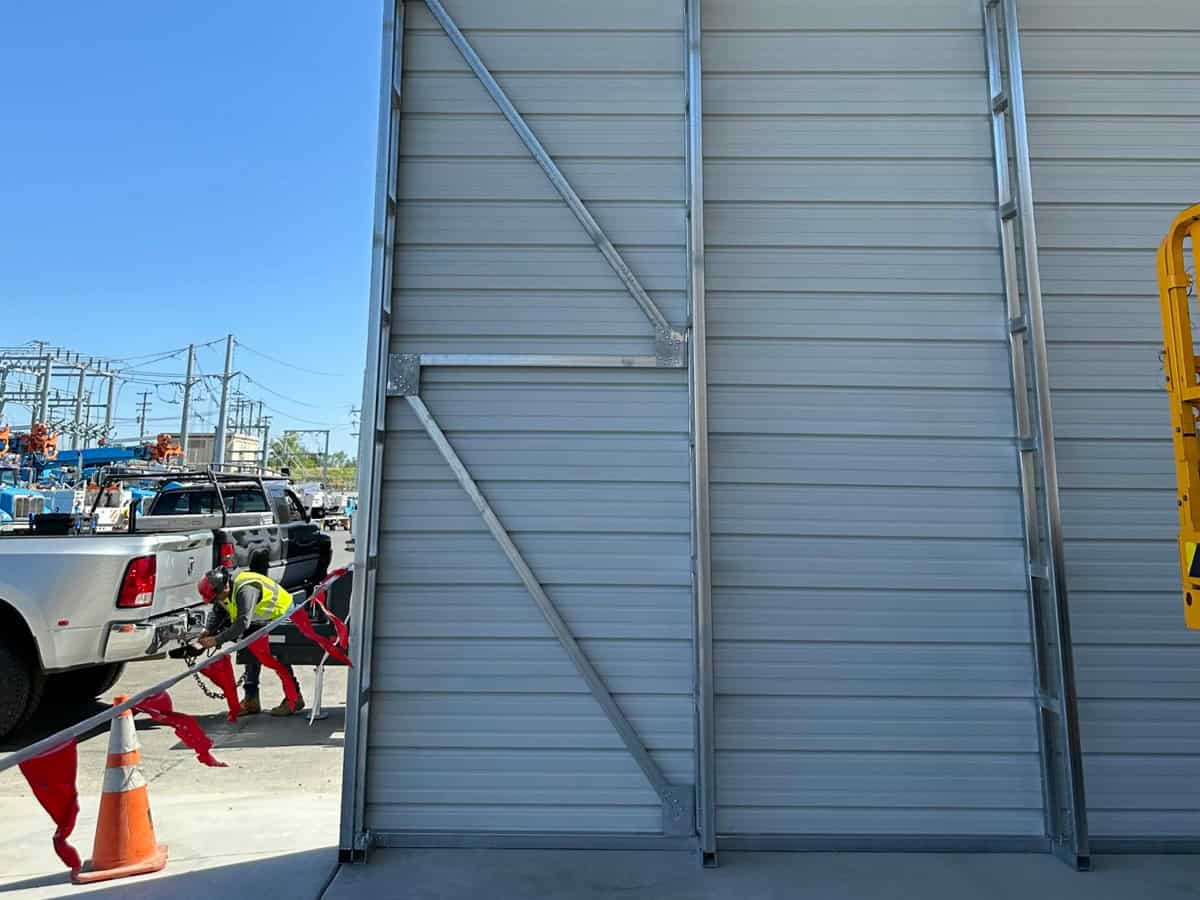

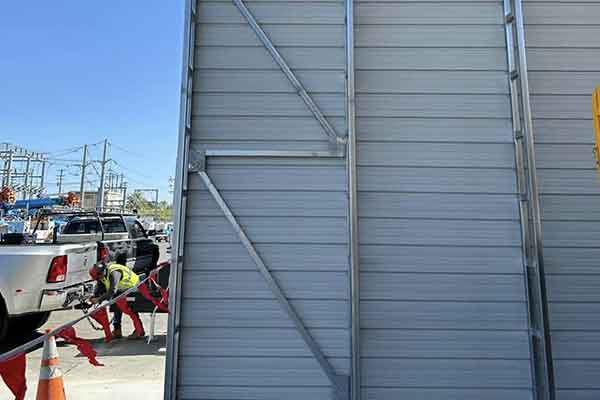

Bracing is one of the quiet structural details that determines how a carport, garage, RV cover, or wide-span structure behaves under wind, snow, and lateral movement. The photos below show real examples of diagonal and wall bracing details used to stiffen the frame and support long-term performance.
What Bracing Does

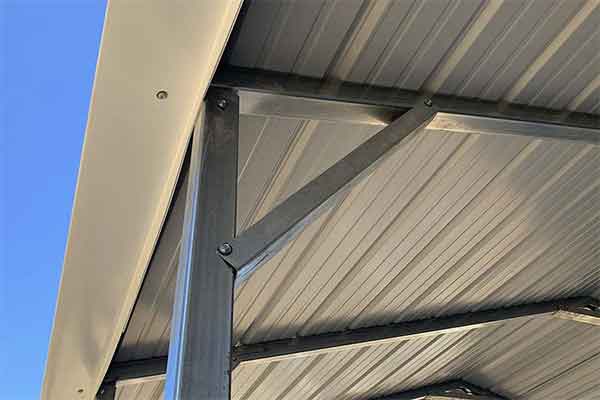

- Reduces lateral movement: Diagonal bracing helps the frame resist side-to-side force from wind exposure.
- Supports tall structures: RV covers, wide-span structures, and taller garages often need added reinforcement because height increases leverage on the frame.
- Improves snow-load performance: In snow regions, added bracing works with closer bow spacing and heavier framing to distribute load through the structure.

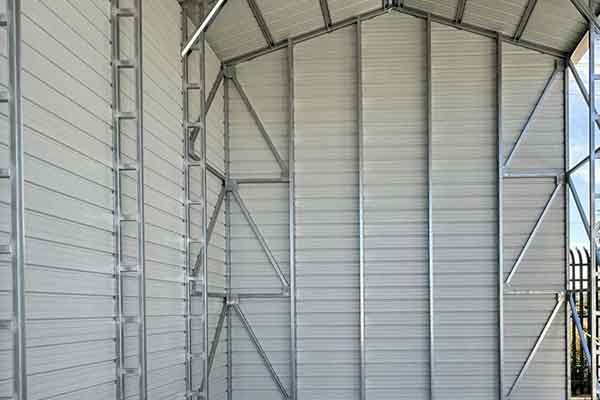

- Protects wall systems: Wall bracing and hat-channel support help keep framed walls, panels, and openings aligned.
When Extra Bracing Matters
Extra bracing is especially important for properties with open wind exposure, taller leg heights, larger spans, enclosed walls, roll-up doors, or elevated snow-load requirements. It is also common on engineered projects where the permit package specifies additional reinforcement.
Related Engineering Resources
Bracing decisions are easier to visualize when paired with real structure examples. Review metal garages for enclosed wall and door planning, then compare the 12 x 20 x 10 vertical roof garage for a compact enclosed layout. For tall open coverage, the 16 x 40 x 12 vertical RV carport and 18 x 38 x 12 vertical RV carport are useful references for height, wind exposure, and frame reinforcement.
Use this gallery as a visual reference when comparing structure options, then confirm the final bracing requirements with your quote, engineering package, and local permit requirements.
